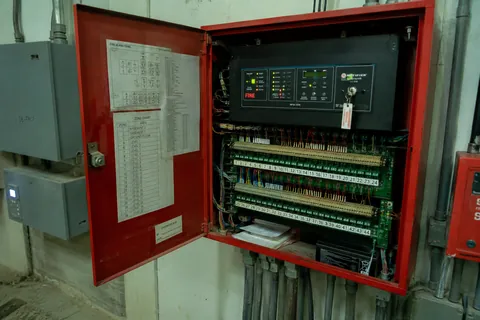

A fire alarm panel open in its red enclosure, the loop cards and field wiring exposed inside.

System 02 of 07

Fire & life safety

Fire is the only system in a building that is examined by an authority before occupation and by an inquiry afterwards. Almost every installation we assess works as a fire alarm and fails as a fire response, because the alarm was contracted and the response was assumed.

What this system covers

Detection
Addressable and conventional, aspirating, beam, flame and linear heat, chosen per environment rather than per floor plate.
Alarm and control
Panels, networked panels across estates, repeaters, and the graphical interface a duty operator actually uses.
Suppression
Gas suppression for equipment rooms and archives, kitchen suppression, and interfaces to sprinkler and hydrant systems.
Evacuation
Sounders, voice alarm, message content and phased or total zoning matched to the fire strategy.
Interlocks
Access, lifts, dampers, pressurisation, generator and public address, specified as named interfaces with owners.
Testing and records
Commissioning regimes, cause-and-effect verification, and the six-monthly evidence an inspection will ask for.

Design decisions

Eight choices that determine whether a fire system is a response or an alarm.

Every one of these is made at design stage and cannot be corrected later without cost. Most are invisible in a BOQ comparison, which is precisely why the cheapest tender usually got them wrong.

  1. 01
    Detection type chosen per environment, not per floor plateKitchens, plant rooms, atria, cold rooms and server rooms each defeat a different detector. A single detection type across a building is a specification that has not been thought about.
    Kitchen
    Server room
    Atrium
    • Optical smokethe default
    • Heat / linearrate of rise
    • Aspiratingair sampled
    • Beamacross the void
    • Specified per roomthe right one for each

    One detector per room, chosen for that room. All three work.Heat in the kitchen. Air-sampling in the server room. A beam across the atrium. Nothing false-alarms, nothing is missed, and nobody switches anything off.

    Smoke detectors everywhere. Two rooms out of three go wrong.The kitchen sets off the alarm every time somebody cooks. Within a week someone switches that zone off, and now the kitchen has nothing. The server room is too clean and too cold: the detector sees nothing until there is real smoke, and by then the equipment is gone. In the atrium the smoke spreads sideways before it ever reaches the ceiling.

    Heat detectors everywhere. Right in one room, too slow in two.The kitchen is right: heat ignores steam. But heat only triggers when something is already burning hot, so in the server room the damage is done first. In the atrium it is even further away.

    Air-sampling everywhere. Right in two rooms, wasted in one.The server room is right: this one smells trouble before there is anything to see. The atrium works too. The kitchen is wrong and expensive, because it is even more sensitive than a smoke detector, so it goes off sooner.

    Beam detectors everywhere. Right in one room, useless in two.The atrium is right: a beam catches smoke where it actually collects. The kitchen and server room are too small for it and too full of things in the way.

    One detector per room, chosen for that room. All three work.Heat in the kitchen. Air-sampling in the server room. A beam across the atrium. Nothing false-alarms, nothing is missed, and nobody switches anything off.

    The detector that keeps going off is the one somebody switches off. After that the room has nothing protecting it, and it is not written down anywhere.

  1. 02
    Zoning matched to the evacuation strategyPhased or total evacuation is a fire strategy decision, and the panel zoning has to express it. Zoning drawn to suit cable routes is the most common error we find.
    7
    6
    5
    4
    3
    2
    1
    Phased
    7
    6
    5
    4
    3
    2
    1
    Total

    Phased: floor 5, then 6, then 4, then the rest. Total: everybody at once, and the stair is at capacity.

    A zone decides who hears the alarm and when. Set up around the building, it empties the floors nearest the fire first, and the stairs stay clear. Set up around the cable, it empties whatever floors happen to share a wire, and the stairs fill with people who were never in danger.

  2. 03
    Interfaces named, with an owner eachLift recall, door release, damper closure, pressurisation, PA. Each written into a scope, so no interface can be assumed to sit in somebody else's package.

    One trigger, two buildings

    A smoke detector goes off. Watch what should happen, and what usually does.

    Integrated by one party

    1. Detector confirms, panel escalates
    2. Doors on the affected floor release
    3. Lifts recall to ground and hold
    4. Dampers close, pressurisation starts
    5. Cameras pin and begin evidence capture
    6. Announcement plays on the right floors, in order

    Five vendors, nobody owning the joins

    1. Detector confirms, panel escalates
    2. Doors stay locked. Access was a separate contract
    3. Lifts continue running
    4. Dampers never wired to the panel
    5. Cameras keep their pre-set patrol
    6. One siren, every floor, no instruction

    Every one of these is a wire between two systems. Each one belongs in somebody’s contract or it belongs in nobody’s, and nobody’s is what we find.

  1. 04
    A cause-and-effect matrix written as a deliverableEvery input against every output, before installation rather than after. Without it, integration is a series of assumptions held by different contractors.
  2. 05
    Cable survivability specified for the strategyCircuits that must keep working during a fire, routed so that one failure cannot take out a whole evacuation zone.
  3. 06
    Standby power calculated, not assumedQuiescent and alarm load calculated against the required standby duration for that occupancy, and re-verified when devices are added.
  4. 07
    Suppression chosen against what the loss actually isIn a server room or an archive, water is often the greater risk. Sometimes the right answer is not to suppress at all, but to detect it much sooner.
  5. 08
    The test regime defined at designWhat is tested, at what interval, and what constitutes a pass for each interlock. Written before handover, so the annual visit exercises the response rather than the sounders.

  6. All eight are decided before anything is installed. None of them appears as a line on a quotation.

Standards and approvals

National Building Code of India 2016, Part 4: Fire and Life Safety
Occupancy classification, means of egress, detection and suppression provision, and the clearance that unlocks occupancy.
IS 2189: Selection, Installation and Maintenance of Automatic Fire Detection and Alarm System, Code of Practice
Where automatic detection is required, detector type per space, zoning, alarm audibility, standby supply and the requirement that detection cabling remains independent of other systems.
Maharashtra Fire Prevention and Life Safety Measures Act 2006
State obligations, and the two certificates in sequence. Form A issued once on completion, covering the first year, then Form B every six months thereafter in January and July, certifying the measures are maintained. Only a Licensed Agency may issue either; we arrange it and prepare the system for it.
Local fire authority requirements
Provisional approval at plan stage and occupation NOC as separate applications, each with its own document list.
Insurer and client standards
Where a policy imposes requirements beyond code, the higher standard governs.
Clause-level application
Applied per occupancy classification and building height, with the relevant state fire rules taking precedence where they are stricter.

Testing intervals

NBC Part 4 Section 9 sets the testing rhythm: monthly alarm tests, quarterly extinguisher inspection, half-yearly wet-riser flow, annual full-flow sprinkler. Most buildings we assess have a maintenance contract and no record of any of it.

What we hand over

Design basis report
The strategy, the assumptions, and why each decision was made. So the next engineer inherits reasoning, not just equipment.
Zone and layout drawings
As-built, reconciled against the approved set rather than against the original design intent.
Cause-and-effect matrix
Signed. Every input against every output, with the test result recorded against each line.
Commissioning records
Device-level test evidence, interlock verification, and standby load calculation with the measured result.
O&M manual
Written to be used by a facility team or a managing committee, not filed unopened.
Maintenance schedule
What is tested, when, and what a pass looks like for each interlock, ready to be tendered or handed to us.
Fire and life safety interfaces
InterfaceNormally contracted toWhen it is nobody’s
Door release Access control vendor, or nobody The alarm sounds and controlled doors stay locked.
Lift recall Lift contractor, assumed by fire Lifts keep answering calls during an evacuation.
Damper closure HVAC or BMS contractor Smoke moves through the building as though nothing were installed.
Pressurisation HVAC contractor Stair pressurisation does not start and the escape route fills.
Public address override AV vendor One siren on every floor and no instruction to anybody.
Camera evidence pinning Security vendor Cameras hold their patrol during the one event worth recording.

Across the spine

Fire & life safety appears at three stages. It governs one.
